Wagner, G. 1898.

On some turtle remains from the Fort Pierre.

Kansas University Quarterly 7(4):201-203

Wherein George Wagner describes several turtle specimens from the Ft. Pierre Formation (now Sharon Springs Formation) of Western Kansas. Note that the figured specimen (KUVP 1221) could not be relocated according to Schultze, et al. (1985).


On Some Turtle Remains from the Ft. Pierre.


Contributions from the Paleontological Laboratory, No. 37.




            Among the material collected this summer (1898) by the University Geological Expedition are some remains of turtles, from the Ft. Pierre. Though fragmentary, they are worthy of study; firstly, because they seem to be the first material of this nature collected from this horizon in Kansas, and almost the first from any locality; and secondly, because of their remarkable relation to the turtles described from the underlying Niobrara.


Toxochelys latiremis Cope.

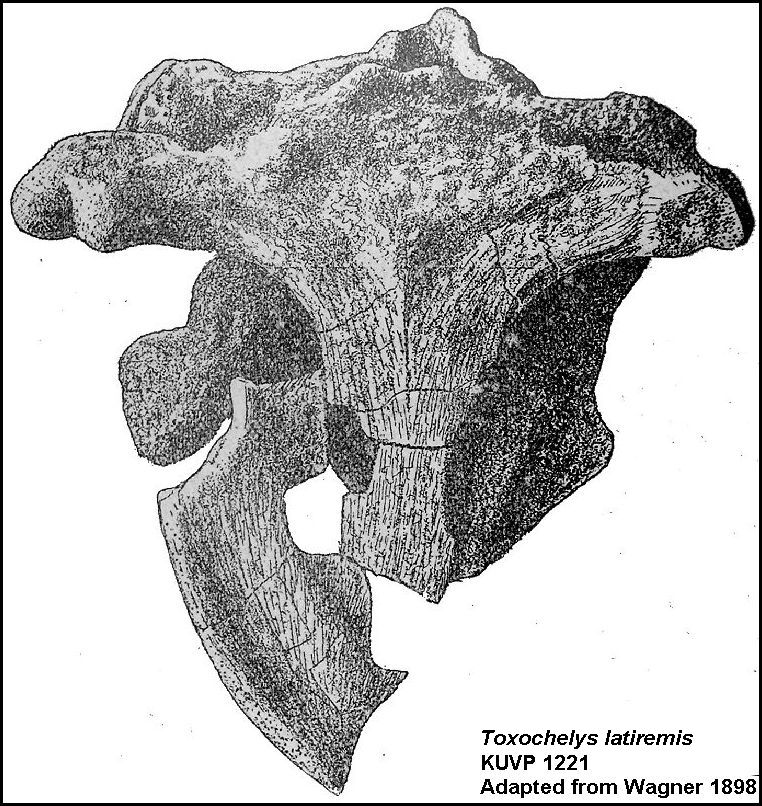

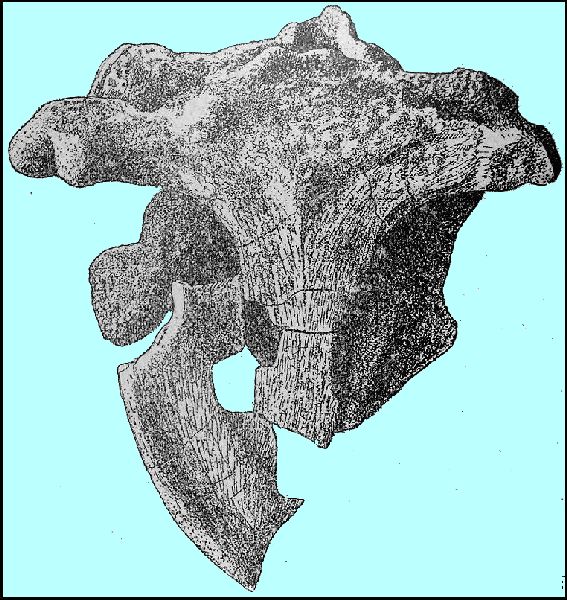

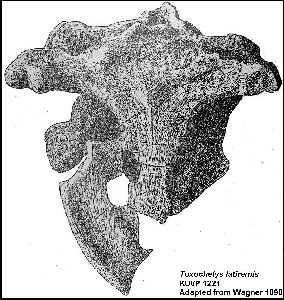

            A specimen consisting chiefly of the back part of the skull and a part of the upper jaw must evidently be referred to this species. The material (Kas. Univ. Museum, No. 1221) is in the poor state of preservation so common with Ft. Pierre fossils; it shows, however, fairly well most of the quadrate, the basisphenoid, and parts of the pterygoid, maxillary, basi and supra-occipital, and parietal. The sutures are indistinct except between the quadrate and pterygoid. (See fig. I.)

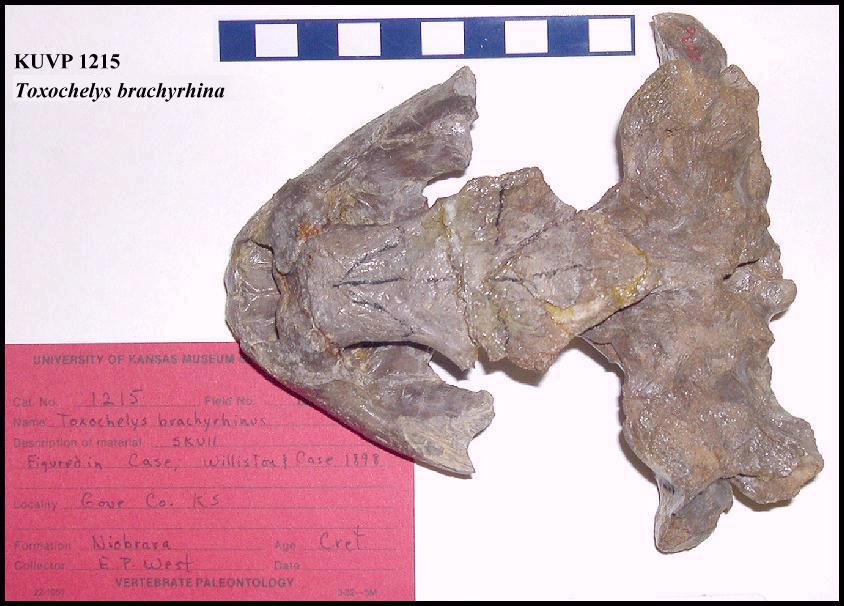

            On comparison of these elements with the corresponding parts of two skull of T. latiremis collected from the Niobrara, (Kans. Univ. Mus. Nos. 1214 and 1215),* I fail to find any difference in specific characters; even in size they are nearly identical. A difference in the appearance of the articular surface of the quadrate is undoubtedly due to difference in compression. This specimen was discovered by Professor Williston at Eagle Tail Creek, near Sharon Springs, Kas.


            Another specimen (Kansas University Museum 1222) consists of fragments of a lower jaw, including one nearly complete


*See University Geol. Survey of Kas., Vol. 4, Plate 79.

                              (201) KAN. UNIV. QUAR. VOL. VII, NO. 4, OCT. 1898, SERIES A.

202                                               KANSAS UNIVERSITY QUARTERLY


Fig. 1.

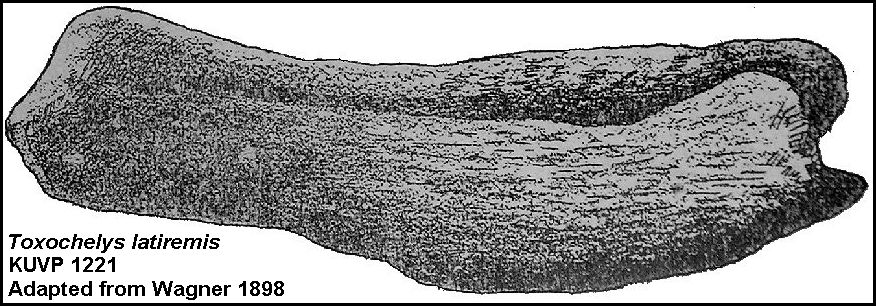

ramus. The sutures can be traced fairly well and the jaw is but little distorted (See fig. 2.). In the interrelation of the bones and in the slender symphysis this ramus greatly resembles that of T. latiremis, but the ramus as a whole is very much stouter than that of latiremis. Its length is about twice that of the only latiremis jaw in the University museum (No. 1215), and even exceeds that of




Fig. 2


a specimen figured by Cope.* The specimen was discovered by Mr. Sydney Prentice near Lisbon, Wallace county, Kas.

            The discovery of the same species of vertebrates in the Ft. Pierre and Niobrara, of which the first mentioned above is one of


*Cretaceous Vertebrates. Plate VIII. Figs. 1. la.

                WAGNER: TURTLE REMAINS FROM THE FT. PIERRE                         203


several examples, is certainly worthy of note, and throws doubt upon the propriety of the terms Colorado and Montana in Cretaceous stratigraphy [see also Williston, 1902]. That the formation whence the specimen came is Ft. Pierre is evident from the invertebrate fauna. Prof. Williston also informs me that the genus Platecarpus, and possibly the species coryphæus, occur in the same horizon. Furthermore Prof. Case considers* Mr. Wieland's Archelon ischyros,** from the Ft. Pierre of South Dakota, congeneric, if not conspecific, with the Protostega of the Niobrara.

            Prof. S. W. Williston has furnished me with the above specimens, as well as with constant aid and encouragement in this and other work. To him my deepest gratitude is due.


*Journal of Morphology, Vol. 14. P. 52. (1897).

**Am. Jour. Sc. Vol. II, Dec., l896. P. 399, 1 Plate.



Case, E. C. 1897. On the osteology and relationships of Protostega. Journal of Morphology 14(1): 21-60.

Cope, E. D., 1875. The Vertebrata of the Cretaceous formations of the West. Report, U. S. Geological Survey Territories (Hayden). 2:302 p, 57 pls.

Schultze, H.-P., L. Hunt, J. Chorn and A. M. Neuner. 1985. Type and figured specimens of fossil vertebrates in the collection of the University of Kansas Museum of Natural History, Part II. Fossil Amphibians and Reptiles. Miscellaneous Publications of the University of Kansas Museum of Natural History 77:66 pp.

Wagner, G. 1898. On some turtle remains from the Fort Pierre. Kansas University Quarterly 7(4):201-203.

Wieland, G. R. 1896. Archelon ischyros: a new gigantic cryptodire testudinate from the Fort Pierre Cretaceous of South Dakota. American Journal of Science 4 Series ,   2:399-412,  pl. v.

Williston, S. W. 1898. Turtles.  The University Geological Survey of Kansas, Part VI.  4:349-369. pls. 73-84.

Williston, S. W. 1902. On the hind limb of Protostega. American Journal of Science, Series 4, 13(76):276-278, 1 fig.
