Charles H. Sternberg
The sharks of Kansas
Popular Science News 34:38.
Copyright © 2004-2009 by Mike Everhart
ePage created 11/09/2004;
last updated 07/11/2009
Wherein Charles H. Sternberg describes two species of sharks found in the Smoky Hill Chalk of western Kansas.
See more about Charles H. Sternberg here.
|38 POPULAR SCIENCE February, 1900|
The Sharks of Kansas.
In 1891, while conducting an expedition in the Chalk of Western Kansas for the Palaeontological Museum of Munich, under the direction of Dr. Von Zittel, its famous director, I discovered in the chalk of Hackberry Creek, Gove Co., some very small flattened disks, slightly hi-concave, that were in their original position. With pick and shovel, I removed the loose material above the floor in which the skeleton lay buried.
As I continued my labor and got further into the bluff beyond the action of frost, the rock became harder and to my great delight, after I had swept the floor, I found a continuous line of these disks, beginning near the end of the tail, where they were about a quarter of an inch wide, increasing in size to the region of the neck, where they were four inches wide. Then, owing to the angle of pressure, they became narrower and thicker. The occipital condyle was attached to the peculiar bones of the skull. These bones were very different from those of bony fishes, as if in old age bony material had been deposited in the cartilage of which the skeletons of sharks are composed. The great plates that evidently covered the roof and floor of the mouth were armed with horrid teeth, arranged in concentric rows, the larger ones measuring about two inches in length from the lance-like point to end of root. The cutting edges were smooth and sharp as a knife, and must have proved a terrible machine, when the vise-like jaws closed upon an unfortunate victim that this torment of other life of his day had captured.
I fully understood also, that I had made a discovery that would gratify the scientific world. As I believed then and still believe, such a specimen of a fossil shark was never seen before or since, The great German museum in which many of our ablest paleontologists, Cope, Marsh, Baur, and a host of others have studied, is justly proud of this specimen, which is full 25 feet long, with 250 teeth, chiefly in or near their original position. This fact is shown by the careful study and research bestowed upon it and kindred forms, by Mr. Chas. R. Eastman, whose inaugural address before the faculty of Ludwig-Maximilian University of Munich, for the degree of Doctor of Philosophy, were published in Stuttgart in 1894, describing this now famous shark, Oxyrhina mantelli of Agassiz. Forty-two pages of text are devoted to the results of his study.
|The value of
such discoveries will be appreciated when we realize that the cartilaginous skeletons of
sharks decay before petrifaction can take place; consequently the forms and structure of

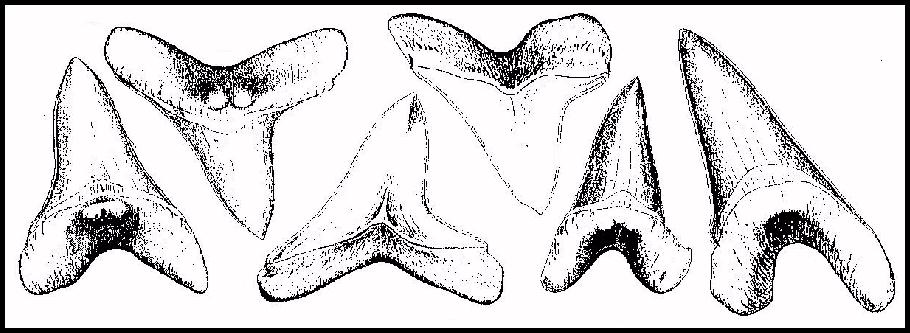

fossil sharks can only be guessed at. The teeth in great numbers strew the old ocean beds

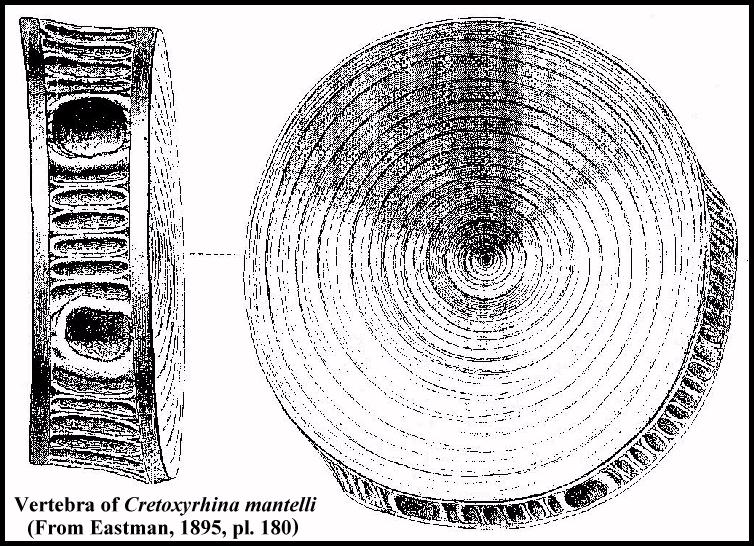

for countless ages. It will be noticed that only the centra of vertebræ and plates of the
skull were discovered, no arches or spines or other parts of the skeleton. The soft spongy
centra had been crushed nearly flat by the pressure of the heavy strata above. These disks
had been noticed and collected years ago by us early explorers in the Kansas Chalk; but we
were unable to place them where they belonged until a lucky find of fragments bearing
Since 1891 I have searched carefully for another individual, but loose and scattered teeth or centra of vertebræ were the only rewards I received, This season, however, I have been again favored by the discovery of 17 continuous vertebræ connected with the peculiar bones of the skull, and the teeth-bearing plates below. They were preserved in disintegrated chalk, crossed by seams of gypsum, the bones broken into fragments. I found 17 of these fragments bearing teeth, and many others from which the teeth had fallen out. As I believe I have saved all the pieces, the ossified part of the skull can be restored.
This will prove, also, of great interest to science, as this specimen belonged to another genus from the one mentioned above. The teeth are broad and flat, slightly recurved, with delicately serrated edges And it represents, I believe, the second best specimen so far taken from the Chalk of Kansas, or the Niobrara Group of the Cretaceous. These teeth range in size from less than ¼ to 7/8 of an inch across the roots, one measuring 1 1/8 inches from recurved point to end of opposite root. There are 132 teeth preserved, some so small as to be hardly visible, others quite large; some are evidently young ones. These beautiful teeth during life must have been used with scissor-like action, cutting the living prey finer then any modern meat-cutter.
I judge from the cervical vertebræ (the disks measuring 2 1/2 inches across), this species must have been nearly as large as the Munich specimen.
CHAS. H. STERNBERG.
Other resources regarding sharks on Oceans of Kansas:
Kansas Sharks - A photographic essay of shark teeth from the Lower Permian to the Upper Cretaceous.
Cretoxyrhina and Squalicorax - Commonly found shark teeth in the Smoky Hill Chalk
A REALLY Big Ginsu Shark - Discovered in 2002 in western Kansas
Cretoxyrhina mantelli - The Ginsu Shark - The biggest shark in the Western Interior Sea
Sharks feeding on mosasaurs - Parts is parts and pieces are pieces.
More on sharks?? See Jim Bourdon's The Life and Times of Long Dead Sharks - "Elasmo.com"
A Moment in Time - Shark Predation on Mosasaurs ---- Even mosasaurs were shark food...
One Day in the Western Interior Sea..... Watch out! Life could be very short for the unwary.
Ptychodontid Sharks: Late Cretaceous Shell Crushers
Beamon, J. C. 1999. Depositional environment and fossil biota of a thin clastic unit of the Kiowa Formation, Lower Cretaceous (Albian), McPherson County, Kansas. Unpublished MS Thesis, Fort Hays State University, Hays, KS, 97 p.
Caggiano, T. and M. J. Everhart, 2003. A rare occurrence of the Late Cretaceous ptychodontid shark, Ptychodus polygyrus Agassiz 1839, in the Smoky Hill Chalk Member (Niobrara Formation) of western Kansas. Kansas Acad. Science Abstracts, 22:28.
Cappetta, H., 1973. Selachians from the Carlile Shale (Turonian) of South Dakota. Jour. Paleon. 47(3):504-514.
Cappetta, H. and Case, G. R., 1987. Chondrichthyes II - Mesozoic and Cenozoic Elasmobranchii. Gustav Fischer Verlag, Stuttgart and New York. 193 p., 148 fig.
Cappetta, H. and Case, G. R., 1999. Additions aux faunes de selaciens du Cretace du Texas (Albien superier-Campanian). Paleo Ichthyologica 9:5-111, 8 fig. 1 table, 30 pls.
Case, G. R. 1965. An occurrence of the sawfish, Onchopristis dunklei, in the Upper Cretaceous of Minnesota. Journal, Minnesota Academy of Science, 32(3):183.
Case, G. R., T. T. Tokaryk and D. Baird. 1990. Selachians from the Niobrara Formation of the Upper Cretaceous (Coniacian) of Carrot River, Saskatchewan, Canada. Can. J. Earth Sci. 27:1085-1094.
Chorn, J. and D. Frailey, 1978. A large chondrichthyan spine, Physonemus mirabilis, from the Upper Pennsylvanian of Kansas, U.S.A. N. Jb. Geol. Paläont. Mh., (7):385-392, 1 fig.
Cicimurri, D., 2000. Early Cretaceous Elasmobranchs from the Newcastle Sandstone (Albian) of Crook County, Wyoming. The Mountain Geologist, 37(3):101-107.
Cicimurri, D., 2001. Fossil Selachians from the Belle Fourche Shale (Cretaceous, Cenomanian) Black Hills Region of South Dakota and Wyoming. The Mountain Geologist, 38(4):181-192.
Cicimurri, D., 2002. Chondrichthyes from the upper part of the Minnelusa Formation (Middle Pennsylvanian: Desmoinesian), Meade County, South Dakota. Proceedings of the South Dakota Academy of Science, 81:81-92.
Cicimurri, D., 200_. Cretaceous elasmobranchs of the Greenhorn Formation (Middle Cenomanian-Middle Turonian), western South Dakota. 6th Fossil Conference Proceedings volume. :27-43.
Cope, E. D., 1875. The vertebrata of the Cretaceous formations of the West. Report, U. S. Geol. Surv. Terr. (Hayden). 2:302 p, 57 pls.
Cope, E. D., 1892. Characters of Paleozoic fishes. Proc. U.S. Nat. Museum. 14:447-463 (Ctenacanthus amblyxiphias Cope 1891)
Corrado, C. A., D. A. Wilhelm, K. Shimada, and M. J. Everhart. 2003. A new skeleton of the Late Cretaceous lamniform shark, Cretoxyrhina mantelli, from western Kansas. Journal of Vertebrate Paleontology, Volume 23 (Supplement to Number 3): 43A.(Abstract)
Cragin, F. W., 1895. A study of the Belvidere Beds. Amer. Geol. 16:357-385. (Kiowa Shale, Early Cretaceous)
Dibley, G. E., 1911. On the teeth of Ptychodus and their distribution in the English Chalk. Quart. Journal Geological Society London LXVII
Everhart, M. J. 2004. First record of the hybodont shark genus, Polyacrodus sp., (Chondrichthyes; Polyacrodontidae) from the Kiowa Formation (Lower Cretaceous) of McPherson County, Kansas. Kansas Academy of Science, Transactions 107(1/2): 39-43.
Everhart, M. J. 2004. Late Cretaceous interaction between predators and prey. Evidence of feeding by two species of shark on a mosasaur. PalArch, vertebrate palaeontology series 1(1):1-7. (see the webpage here)
Everhart, M. J. and Caggiano, T. 2004. An associated dentition and calcified vertebral centra of the Late Cretaceous elasmobranch, Ptychodus anonymus Williston 1900. Paludicola, 4(4), p. 125-136.
Everhart, M. J., T. Caggiano and K. Shimada. 2003. Note on the occurrence of five species of ptychodontid sharks from a single locality in the the Smoky Hill Chalk (Late Cretaceous) of western Kansas. Kansas Acad. Sci. Abstracts, 22:29.
Everhart, M. J. and M. K. Darnell. 2004. Occurrence of Ptychodus mammillaris (Elasmobranchii) in the Fairport Chalk Member of the Carlile Shale (Upper Cretaceous) of Ellis County, Kansas. Kansas Academy of Science, Transactions 107(3-4):126-130.
Everhart, M. J. and P. A. Everhart, 1998. New data regarding the feeding habits of the extinct lamniform shark, Cretoxyrhina mantelli, from the Smoky Hill Chalk (upper Cretaceous) of western Kansas. Kansas Acad. Sci. Trans. 17:(Abstracts)33.
Everhart, M. J. and P. A. Everhart, 2003. First report of the Paleozoic shark, Ctenacanthus amblyxiphias Cope 1891 from the Lower Permian of Morris County Kansas. Kansas Acad. of Science Abstracts, 22:13.
Everhart, M. J., P. A. Everhart and K. Ewell. 2004. A marine ichthyofauna from the Upper Dakota Sandstone (Late Cretaceous). Abstracts of oral presentations and posters, Joint Annual Meeting of the Kansas and Missouri Academies of Science, p. 48.
Everhart, M. J., P. A. Everhart, E. M. Manning, and D. E. Hattin. 2003. A Middle Turonian marine fish fauna from the Upper Blue Hill Shale Member, Carlile Shale, of north central Kansas. Journal of Vertebrate Paleontology, Volume 23 (Supplement to Number 3): 49A.(Abstract)
Everhart, M. J., K. Shimada and K. Ewell. 2004. First record of the lamniform shark genus, Johnlongia, from the Niobrara Chalk. Abstracts of oral presentations and posters, Joint Annual Meeting of the Kansas and Missouri Academies of Science, p. 48.
Ewell, K. and M. J. Everhart. 2004. A Paleozoic shark fauna from the Council Grove Group (Lower Permian). Abstracts of oral presentations and posters, Joint Annual Meeting of the Kansas and Missouri Academies of Science, p. 48-49.
Gibbs, R. W., 1848. Monograph of the fossil Squalidae of the United States. Jour. Acad. Nat. Sci. Phila. Vol. 1, 2nd Ser., pt. 2, art. 12:139-147. pls. 18-21 (Ptychodus mortoni).
Hamm, S. A. and M. J. Everhart, 1999. The occurrence of a rare Ptychodontid shark from the Smoky Hill Chalk (upper Cretaceous) of Western Kansas. Kansas Acad. Sci. Trans. 18(Abstracts):34.
Hamm, S. A. and K. Shimada. 2002. Associated tooth set of the late Cretaceous lamniform shark, Scapanorhynchus raphiodon (Mitsukurinidae), from the Niobrara Chalk of Western Kansas. Kansas Acad. Sci. Trans. 105(1-2)18-26.
Hamm, S. A., K. Shimada and M. J. Everhart, 2003. Three uncommon lamniform sharks from the Smoky Hill Chalk (Upper Cretaceous) of western Kansas. Kansas Academy of Science Abstracts, 22:30-31.
Hansen, Michael C., 1986, Microscopic chondrichthyan remains from Pennsylvanian marine rocks of Ohio and adjacent areas: unpublished Ph.D. dissertation, The Ohio State University, 535 p.
Hattin, D. E., 1962. Stratigraphy of the Carlile Shale (Upper Cretaceous) in Kansas. State Geol. Surv. of Kansas, Bull. 156, (University of Kansas pub.) 155 p. 2 pl.
Hattin, D. E., 1965. Stratigraphy of the Graneros Shale (Upper Cretaceous in central Kansas. Bulletin 178, Kansas Geological Survey, 83 pp.
Hattin, D. E., 1975. Stratigraphy and depositional environment of the Greenhorn Limestone (Upper Cretaceous) of Kansas. Bulletin 209, Kansas Geological Survey, 128 pp.Hattin, D. E., 1982. Stratigraphy and depositional environment of the Smoky Hill Chalk Member, Niobrara Chalk (Upper Cretaceous) of the type area, western Kansas. Kansas Geological Survey Bulletin 225, 108 pp.
Hattin, D. E. and C. T. Siemers, 1978. Upper Cretaceous stratigraphy and depositional environments of western Kansas. Guidebook Series 3, AAPG/SEPM annual meeting, Kansas Geological Survey, 55 pp. (Reprinted 1987.
Itano, W. M., K. J. Houck, and M. G. Lockley. 2003. Ctenacanthus and other chondrichthyan spines and denticles from the Minturn Formation (Pennsylvanian) of Colorado. Jour. Paleon. 77(3):524-535.
Kirkland, J. I., 1989. Fossil elasmobranchs from the mid Cretaceous (Middle Cenomanian Middle Turonian) Greenhorn Cyclothem of eastern Nebraska. Proc. Nebraska Acad. Sci., Ninety ninth Annual Meeting, p. 52. (Abstract)
Kirkland, J. I., 1996. Paleontology of the Greenhorn cyclothem (Cretaceous: Late Cenomanian to middle Turonian) at Black Mesa, northeastern Arizona. New Mexico Museum of Natural History and Science, Bull. 9, 131 p., 50 pls. (I have pages 110-113 listing vertebrate remains). <EM>
Leidy, J., 1859. [Xystracanthus, Cladodus and Petalodus from the Carboniferous of Kansas]. Proc. Acad. Nat. Sci. Phila., 11:3. <EM>
Lucas, S. G., 2002. The first vertebrate fossil described from New Mexico. New Mexico
Geologist 24(2):49. (P. whipplei)
Lucas, S. G., B. S. Kues, S. N. Hayden, B. D. Allen, K. K. Kietzke, T. E. Williamson, P. Sealey and R. Pence, 1988. Cretaceous stratigraphy and biostratigraphy, Cooke's Range, Luna County, New Mexico. New Mexico Geological Society Guidebook, 39th Field Conference, Southwestern New Mexico, pp. 143-167.
Lucas, S. G., P. K. Reser, and D. L. Wolberg, 1985. Shark vertebrae from the upper Cretaceous Pierre Shale, northeastern New Mexico. New Mexico Bureau of Mines and Mineral Resources Circular 195, pp. 21-23.
Maisey, J. G., 1975. The interrelationships of phalacanthous selachians. N. Jb. Geol. Paläont. Mh. 9:553-567, 6 fig.
Maisey, J. G., 1977. Structural notes on a cladoselachian dorsal spine. N. Jb. Geol. Paläont. Mh. 1:47-55, 6 fig.
Maisey, J. G., 1982. Studies on the Paleozoic selachian genus Ctenacanthus No. 2. Bythiacanthus St. John and Worthen, Amelacanthus St. John and Worthen, Sphenacanthus Agassiz, and Wodnika Münster. American Museum Noviates, 2722:1-24.
Maisey, J. G., 1984. Studies on the Paleozoic selachian genus Ctenacanthus Agassiz. No. 3.: Nominal species referred to Ctenacanthus. American Museum Noviates, 2774:1-20.
Maisey, J. G., 1996. Discovering Fossil Fishes. Henry Holt and Company, New York.
Manning, E. M. and D. T. Dockery III., 1992. A guide to the Frankstown vertebrate fossil locality (upper Cretaceous), Prentiss County, Mississippi. Mississippi Dept. Env. Qual., Office of Geo. Circular 4, 43 p. 2 pl.
Marcou, J., 1858. Geology of North America, with two reports on the prairies of Arkansas and Texas, the Rocky Mountains of New Mexico, and the Sierra Nevada of California, originally made for the United States Government. Pp. i-vi, 1-144, with 7. (fig. and naming of P. whipplei)
McLeod, N., 1982. The first North American occurrence of the Late Cretaceous
elasmobranch Ptychodus rugosus Dixon with comments on the functional morphology
of the dentition and dermal denticles. Jour. Paleon., 56(2):403-409.
McLeod, N. and B. H. Slaughter. 1980. A new ptychodontid from the Upper Cretaceous of Texas. Texas Jour. Sci. 32(4):333-335.
McKinzie, M. G., R. Morin, and E. Swiatovy. 2001. Fossil collector's guidebook to the North Sulphur River [Texas]. Occasional Papers, Dallas Paleontological Society, Vol. 4, 119 pp., 20 pl.
McNulty, C. L. Jr. and B. H. Slaughter. 1962. A new sawfish from the Woodbine Formation (Cretaceous) of Texas. Copeia 1962(4):775-777.
McNulty, C. L. Jr. and B. H. Slaughter. 1964. Rostral teeth of Ischyrhiza mira Leidy from northeast Texas. Texas Jour. Sci. 16:107-112, 1 pl.
McNulty, C. L. Jr. and B. H. Slaughter. 1972. The Cretaceous selachian genus, Ptychotrygon Jaekel 1894. Eclog. Geol. Helvetiae 65(3):647-656, 1 pl. <EM>
Meyer, R. L. 1974. Late Cretaceous elasmobranchs from the Mississippi and East Texas embayments of the Gulf Coastal Plain. Unpublished Doctoral dissertation, Southern Methodist University, Dallas, 419 pp.
Morton, S. G. 1834. Synopsis of the organic remains of the Cretaceous group of the United States. Key and Biddle, Philadelphia, 88 pp., 19 pl.
Morton, S. G. 1842. Description of some new species of organic remains of the Cretaceous group of the United States; with a tabular view of the fossils hitherto discovered in this formation. Jour. Acad. Nat. Sci. Phila. viii pp. 207-227, pls. x, xi.
Mudge, B. F. 1866. First Annual Report on the Geology of Kansas. State Printer. 57 pp. (first 15 pages only)
Mudge, B. F., 1874. Rare forms of fish in Kansas. Kansas Acad. Sci. Trans. 3:121-122 (Agassizodus tooth plate and Protosphyraena)
Mudge, B. F. 1876. Notes on the Tertiary and Cretaceous periods of Kansas. Bull. U.S. Geol. Surv. Terr. (Hayden), 2(3):211-221.
Mudge, B. F. 1877. Annual Report of the Committee on Geology, for the year ending November 1, 1876. Kansas Acad. Sci. Trans., Ninth Annual Meeting, pp. 4-5. (discovery of Uintacrinus socialis in Kansas, Pteranodon, sharks and birds.)
Romer, A. S. 1942. Notes on certain American Paleozoic fishes. Amer. Jour. Sci., 240:216-228, 1 pl.
Russell, D. A. 1988. A check list of North American marine cretaceous vertebrates Including fresh water fishes, Occasional Paper of the Tyrrell Museum of Palaeontology, (4):57.
Schultze, H.-P., J. D. Stewart, A. M. Neuner and R. W. Coldiron. 1982. Type and figured specimens of fossil vertebrates in the collection of the University of Kansas Museum of Natural History. Part I. Fossil fishes. Misc. Pub. Univ. Kansas Mus. Nat. Hist. 73:53 pp.
Scott, R. W. 1970. Paleoecology and paleontology of the Lower Cretaceous Kiowa Formation, Kansas. The University of Kansas Paleontological Contributions, Article 52, 94 pp.
Shimada, K. 1993. Upper Cretaceous elasmobranchs from the Blue Hill Shale Member of the Carlile Shale, Western Kansas. Kansas Academy of Science Abstracts, 12(78).
Shimada, K. 1993. Upper Cretaceous selachians from the Fort Hays Limestone Member of the Niobrara Formation in Ellis County, Kansas. Kansas Academy of Science Abstracts, 12(78).
Shimada, K. 1994. Paleobiology of the Late Cretaceous shark, Cretoxyrhina mantelli (Lamniformes: Cretoxyrhinidae), from Kansas. Unpubl. Masters thesis. 169 pp. Fort Hays State University.
Shimada, K. 1996. Selachians from the Fort Hays Limestone Member of the Niobrara Chalk (Upper Cretaceous), Ellis County, Kansas. Kansas Acad. Sci. Trans. 99(1-2):1-15.
Shimada, K. 1997. Dentition of the late Cretaceous lamniform shark, Cretoxyrhina mantelli, from the Niobrara Chalk of Kansas. Journ. Vert. Paleon. 17(2):269-279.
Shimada, K. 1997. Shark-tooth-bearing coprolite from the Carlile Shale (upper Cretaceous), Ellis County, Kansas. Kansas Acad. Sci. Trans. 100(3-4):133-138.
Shimada, K. 1997. Stratigraphic record of the late Cretaceous lamniform shark, Cretoxyrhina mantelli (Agassiz), in Kansas. Kansas Acad. Sci. Trans. 100(3-4):139-149.
Shimada, K. 1997. Gigantic lamnoid shark vertebra from the lower Cretaceous Kiowa Shale of Kansas. Journ. Paleon. 71(3):522-524.
Shimada, K. 1997. Paleoecological relationships of the late Cretaceous lamniform shark, Cretoxyrhina mantelli (Agassiz). Journ. Paleon. 71(5):926-933.
Shimada, K., 1997. Periodic marker bands in vertebral centra of the late Cretaceous lamniform shark, Cretoxyrhina mantelli. Copeia (1):233-235.
Shimada, K., K. Ewell and M. J. Everhart. 2004. The first record of the lamniform shark genus, Johnlongia, from the Niobrara Chalk (Upper Cretaceous, western Kansas. Kansas Academy of Science, Transactions 107(3/4):131-135.
Shimada, K and M. J. Everhart. 2003. Ptychodus mammillaris (Elasmobranchii) and Enchodus cf. E. schumardi (Teleostei) from the Fort Hays Limestone Member of the Niobrara Chalk (Upper Cretaceous) in Ellis County, Kansas. Kansas Academy of Science, Transactions 106(3-4):171-176.
Shimada, K. and M. J. Everhart. 2004. Shark-bitten Xiphactinus audax (Teleostei: Ichthyodectiformes) from the Niobrara Chalk (Upper Cretaceous) of Kansas. The Mosasaur 7, p. 35-39.
Shimada, K. and D. J. Martin. 1993. Upper Cretaceous selachians from the basal Greenhorn Limestone in Russell Co., Kansas. Kansas Academy of Science Abstracts, 12(78).
Slaughter, B. H. and M. Steiner. 1968. Notes on rostral teeth of Ganopristine sawfishes, with special reference to Texas material. Jour. Paleon. 42(1):233-239.
Stewart, J. D. 1980. Reevaluation of the phylogenetic position of the Ptychodontidae. Kansas Academy of Science, Transactions 83(3):154. (abstract)
Stewart, J. D. 1990. Niobrara Formation vertebrate stratigraphy, pages 19-30, In Bennett, S. C. (ed.), Niobrara Chalk Excursion Guidebook, The University of Kansas Museum of Natural History and the Kansas Geological Survey.
Stewart, J. D. and J. E. Martin. 1993. Late Cretaceous selachians and associated marine vertebrates from the Dakota Rose Quarry, Grant County, South Dakota. Proc. S. D. Acad. Sci. 72:241-248.
Welton, B. J. and R. F. Farish. 1993. The collectors guide to fossil sharks and rays from the Cretaceous of Texas. Horton Printing Company, Dallas, 204 pp.
Williamson, T. E., J. I. Kirkland and S. G. Lucas. 1993. Selachians from the Greenhorn
cyclothem ("Middle" Cretaceous: Cenomanian-Turonian), Black Mesa, Arizona, and
the paleogeographic distribution of Late Cretaceous selachians. J. Paleon. 67(3):447-474.
Williamson, T. E., S. G. Lucas and J. I. Kirkland. 1990. The Cretaceous elasmobranch Ptychodus decurrens Agassiz from North America. Geobios 24(5):595-599.
Williston, S. W. 1900. Cretaceous fishes [of Kansas]. Selachians and Pycnodonts. Univ. Geol. Surv. Kansas VI pp. 237-256, with pls.
Woodward, A. S. 1887. On the dentition and affinities of the selachian genus Ptychodus Agassiz. Quart. Jour. Geol. Soc. xliii pp. 121-131, with pl. x.
Zangerl, R. 1973. Interrelationships of early chondrichthyans. Pages 1-14 In Greenwood, P. H., R. S. Miles, and C. Patterson, Interrelationships of fishes. Supplement No. 1 to the Zoological Journal of the Linnean Society, Vol. 53.
Zangerl, R. 1981. Chondrichthyes I - Paleozoic Elasmobranchii. 3a:1-115 In Shultze, H-P. (ed.), Handbook of Paleoichthyology. Gustav Fischer Verlag, Stuttgart and New York.
Zielinski, S. L. 1994.First report of Pycnodontidae (Osteichthyes) from the Blue Hill Shale Member of the Carlile Shale (Upper Cretaceous; Middle Turonian), Ellis County, Kansas. Kansas Academy of Science, Abstracts 13(44).
Zidek, J., 1976. Oklahoma Paleoichthyology Part V: Chondrichthyes. Oklahoma Paleontology Notes, 36(5):175-192, Oklahoma Geol. Surv., Norman, OK.
